仕様項目
|
仕様値
|
材料 |
BK-7 or UV fused sillica
|
焦点距離の許容範囲 |
±1% @589nm
|
設計波長 |
589 nm
|
中心性 |
</=3'
|
直径公差 |
+0/-0.1mm
|
クリヤアパーチャ |
> 直径の中心90%
|
中心厚さ公差 |
±0.1mm
|
エッジの厚さ |
3mm, nominal
|
面精度(スクラッチ/ディグ) |
20/10(UVFS) / 40/20(BK7)
|
平面度 |
</=1.5λpower,λ/2 irregularity (UVFS)
</=1.5λpower,λ/4 irregularity (BK-7) |
面取り |
0-0.8mm 面幅(標準)x45°±15°
|
●DUV(深紫外)からIR(赤外)に至る素材
●カスタム寸法、形状
●5mm~500mm径に対応します
●標準又はカスタムコーティングに応じます
●高レーザ損傷閾値

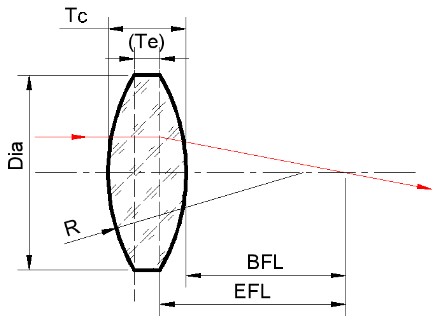

パーツ番号
|
Dia(mm)
|
EFL(mm)
|
R(mm)
|
Tc(mm)
|
Te(mm)
|
材料
|
LBX-063-R056-BK7
|
6.35
|
6.4
|
5.619
|
4.96
|
3.0
|
BK7
|
LBX-063-R124-BK7
|
6.35
|
12.7
|
12.44
|
3.82
|
3.0
|
BK7
|
LBX-063-R190-BK7
|
6.35
|
19
|
19.017
|
3.53
|
3.0
|
BK7
|
LBX-063-R256-BK7
|
6.35
|
25.4
|
25.663
|
3.39
|
3.0
|
BK7
|
LBX-127-R117-BK7
|
12.7
|
12.7
|
11.868
|
6.68
|
3.0
|
BK7
|
LBX-127-R187-BK7
|
12.7
|
19
|
18.705
|
5.22
|
3.0
|
BK7
|
LBX-127-R254-BK7
|
12.7
|
25.4
|
25.444
|
4.61
|
3.0
|
BK7
|
LBX-127-R386-BK7
|
12.7
|
38.1
|
38.679
|
4.05
|
3.0
|
BK7
|
LBX-127-R512-BK7
|
12.7
|
50.2
|
51.234
|
3.79
|
3.0
|
BK7
|
LBX-127-R643-BK7
|
12.7
|
62.9
|
64.392
|
3.628
|
3.0
|
BK7
|
LBX-127-R775-BK7
|
12.7
|
75.6
|
77.538
|
3.521
|
3.0
|
BK7
|
LBX-254-R166-BK7
|
25.4
|
19
|
16.687
|
14.725
|
3.0
|
BK7
|
LBX-254-R243-BK7
|
25.4
|
25.4
|
24.397
|
10.132
|
3.0
|
BK7
|
LBX-254-R380-BK7
|
25.4
|
38.1
|
38.085
|
7.36
|
3.0
|
BK7
|
LBX-254-R508-BK7
|
25.4
|
50.2
|
50.806
|
6.226
|
3.0
|
BK7
|
LBX-254-R640-BK7
|
25.4
|
62.9
|
64.057
|
5.548
|
3.0
|
BK7
|
LBX-254-R772-BK7
|
25.4
|
75.6
|
77.265
|
5.102
|
3.0
|
BK7
|
LBX-254-R904-BK7
|
25.4
|
88.3
|
90.446
|
4.792
|
3.0
|
BK7
|
LBX-254-R1025-BK7
|
25.4
|
100
|
102.577
|
4.578
|
3.0
|
BK7
|
LBX-254-R1284-BK7
|
25.4
|
125
|
128.476
|
4.258
|
3.0
|
BK7
|
LBX-254-R1543-BK7
|
25.4
|
150
|
154.353
|
4.047
|
3.0
|
BK7
|
LBX-254-R1802-BK7
|
25.4
|
175
|
180.219
|
3.896
|
3.0
|
BK7
|
LBX-254-R2060-BK7
|
25.4
|
200
|
206.078
|
3.783
|
3.0
|
BK7
|
LBX-254-R2577-BK7
|
25.4
|
250
|
257.789
|
3.626
|
3.0
|
BK7
|
LBX-254-R5162-BK7
|
25.4
|
500
|
516.245
|
3.313
|
3.0
|
BK7
|
LBX-254-R10330-BK7
|
25.4
|
1000
|
1033.074
|
3.156
|
3.0
|
BK7
|
LBX-508-R1017-BK7
|
50.8
|
100
|
101.729
|
9.444
|
3.0
|
BK7
|
LBX-508-R2576-BK7
|
50.8
|
250
|
257.646
|
5.512
|
3.0
|
BK7
|
LBX-508-R5160-BK7
|
50.8
|
500
|
516.098
|
4.251
|
3.0
|
BK7
|
LBX
|
063
|
R056
|
BK7
|
製品コード
|
直径=6.3mm
|
半径=5.619mm
|
素材
|
パーツ番号
|
Dia(mm)
|
EFL(mm)
|
R(mm)
|
Te(mm)
|
Te(mm)
|
材料
|
LBX-063-R110-UVFS
|
6.35
|
12.7
|
11.003
|
3.936
|
3.0
|
UVFS
|
LBX-127-R103-UVFS
|
12.7
|
12.7
|
10.358
|
7.349
|
3.0
|
UFVS
|
LBX-127-R225-UVFS
|
12.7
|
25.4
|
22.532
|
4.826
|
3.0
|
UVFS
|
LBX-254-R153-UVFS
|
25.4
|
20
|
15.388
|
16
|
3.0
|
UVFS
|
LBX-254-R213-UVFS
|
25.4
|
25.4
|
21.366
|
11.368
|
3.0
|
UVFS
|
LBX-254-R281-UVFS
|
25.4
|
32
|
28.11
|
7.5
|
3.0
|
UFVS
|
LBX-254-R450-UVFS
|
25.4
|
50.2
|
45.013
|
6.657
|
3.0
|
UVFS
|
LBX-254-R685-UVFS
|
25.4
|
75.6
|
68.547
|
5.375
|
3.0
|
UVFS
|
LBX-254-R910-UVFS
|
25.4
|
100
|
91.045
|
4.78
|
3.0
|
UVFS
|
LBX-254-R1370-UVFS
|
25.4
|
150
|
137.045
|
4.179
|
3.0
|
UFVS
|
LBX-254-R1829-UVFS
|
25.4
|
200
|
182.992
|
3.882
|
3.0
|
UVFS
|
LBX-254-R2289-UVFS
|
25.4
|
250
|
228.925
|
3.705
|
3.0
|
UVFS
|
LBX-254-R4584-UVFS
|
25.4
|
500
|
458.46
|
3.350
|
3.0
|
UVFS
|
LBX-254-R9174-UVFS
|
25.4
|
1000
|
917.458
|
3.176
|
3.0
|
UFVS
|
LBX-508-R1825-UVFS
|
50.8
|
200
|
182.571
|
6.551
|
3.0
|
UVFS
|
LBX-508-R4583-UVFS
|
50.8
|
500
|
458.325
|
4.409
|
3.0
|
UVFS
|
